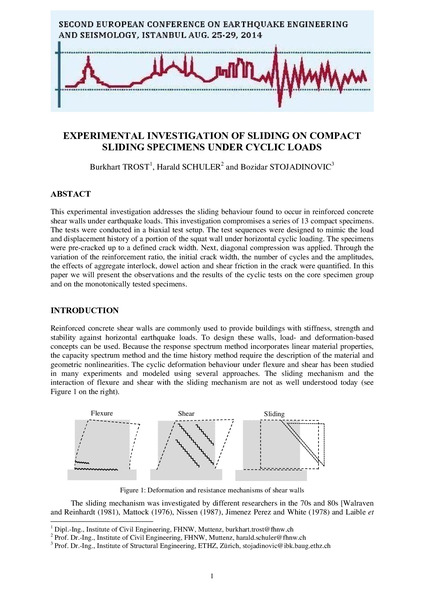

Experimental Investigation of Sliding on Compact Sliding Specimens under Cyclic Loads
04 - Beitrag Sammelband oder Konferenzschrift
Primary target group
Created while belonging to FHNW?
This experimental investigation addresses the sliding behaviour found to occur in reinforced concrete shear walls under earthquake loads. This investigation compromises a series of 13 compact specimens. The tests were conducted in a biaxial test setup. The test sequences were designed to mimic the load and displacement history of a portion of the squat wall under horizontal cyclic loading. The specimens were pre-cracked up to a defined crack width. Next, diagonal compression was applied. Through the variation of the reinforcement ratio, the initial crack width, the number of cycles and the amplitudes, the effects of aggregate interlock, dowel action and shear friction in the crack were quantified. In this paper we will present the observations and the results of the cyclic tests on the core specimen group and on the monotonically tested specimens.
